Docker Architecture & Internals 🏛️

Understanding Docker's internal architecture helps in designing secure, high-performance containerized systems.

1. High-Level Architecture

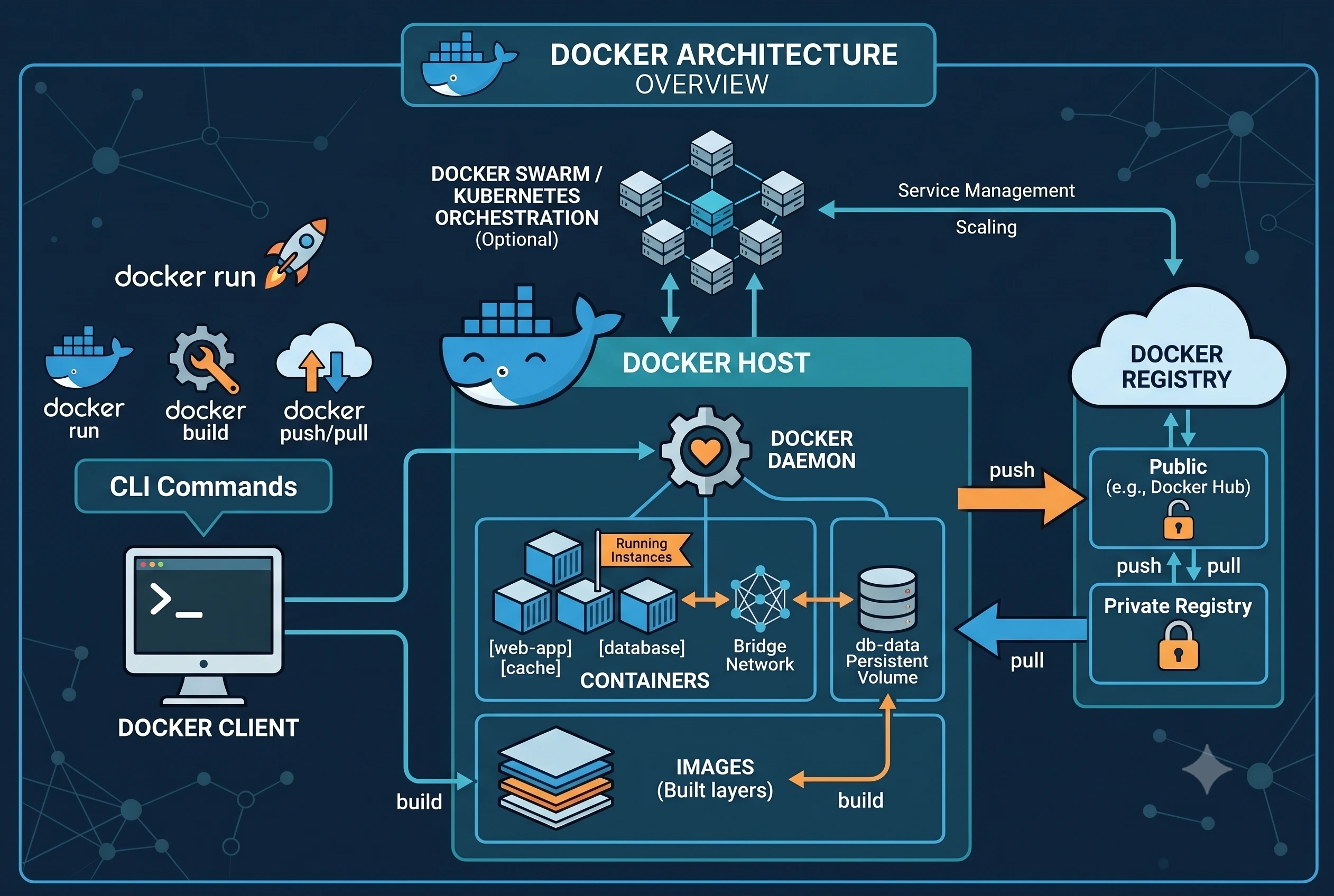

Docker uses a client-server architecture. The Docker Client communicates with the Docker Daemon, which performs the heavy lifting of building, running, and distributing containers.

+-----------------------------------------------------------------------------------+
|                                 DOCKER HOST                                       |
|                                                                                   |
|  +--------------------+               +----------------------------------------+  |
|  |   Docker Client    |               |             Docker Daemon              |  |
|  |  (docker CLI/GUI)  |               |               (dockerd)                |  |
|  +---------+----------+               +-------------------+--------------------+  |
|            |                                              |                       |
|            | REST API / Unix Socket                       | Manages               |
|            v                                              v                       |
|  +--------------------+               +----------------------------------------+  |
|  | Containerd / Runc  | <------------ | Images, Containers, Networks, Volumes  |  |
|  +--------------------+               +----------------------------------------+  |
+-----------------------------------------------------------------------------------+
                                                            ^
                                                            | Pulls / Pushes Images
                                                            v
                                                +------------------------+
                                                |    Docker Registry     |
                                                |  (Docker Hub/ECR/GCR)  |
                                                +------------------------+

2. Core Architectural Components

A. Docker Client

The primary interface used by developers (docker run, docker build). It translates commands into REST API calls and sends them to the Docker Daemon.

B. Docker Daemon (dockerd)

A persistent background process that listens for Docker API requests and manages Docker objects such as images, containers, networks, and volumes.

C. Containerd & Runc

  • Containerd: An industry-standard container runtime that manages the complete container lifecycle (image transfer, storage, execution, monitoring).
  • Runc: A lightweight, OCI-compliant tool used by containerd to spawn and run containers according to Linux kernel standards.

3. Underlying Linux Kernel Technologies

Docker relies on key Linux kernel capabilities to create isolation:

  • Namespaces: Provide isolation for process trees (PID), networking (NET), mount points (MNT), and user IDs (USER).
  • Control Groups (cgroups): Limit and measure resource usage (CPU, Memory, Disk I/O) per container.
  • Union File Systems (Overlay2): Allows layers to be stacked and combined into a single unified view.

4. Docker Image Layers & Storage Drivers

Docker images are composed of read-only layers. When a container starts, Docker adds a thin Read-Write Container Layer on top.

+----------------------------------------------------+
|  Container Read-Write Layer (App logs, temp data)  |  <- Created on 'docker run'
+----------------------------------------------------+
|  Image Layer 3: CMD ["node", "app.js"]            |  (Read-Only)
+----------------------------------------------------+
|  Image Layer 2: COPY . /app                        |  (Read-Only)
+----------------------------------------------------+
|  Image Layer 1: RUN npm install                    |  (Read-Only)
+----------------------------------------------------+
|  Base Layer: FROM node:18-alpine                   |  (Read-Only)
+----------------------------------------------------+
